DUNGS DEZ 100/SEO ignition transformer 15 kV compatible with INOKSAN
€121,07
Sale price
€121,07
Regular price
Skip to product information
Are you in a hurry? Contact us on WhatsApp
SPARE PART:
DUNGS DEZ 100/SEO ignition transformer 15 kV
Open the sections below — you will find everything you need to be sure this is the right part for your machine.
Tap one of the boxes to read the details
Spark ignition transformer for professional ranges, hobs, ovens and fryers.

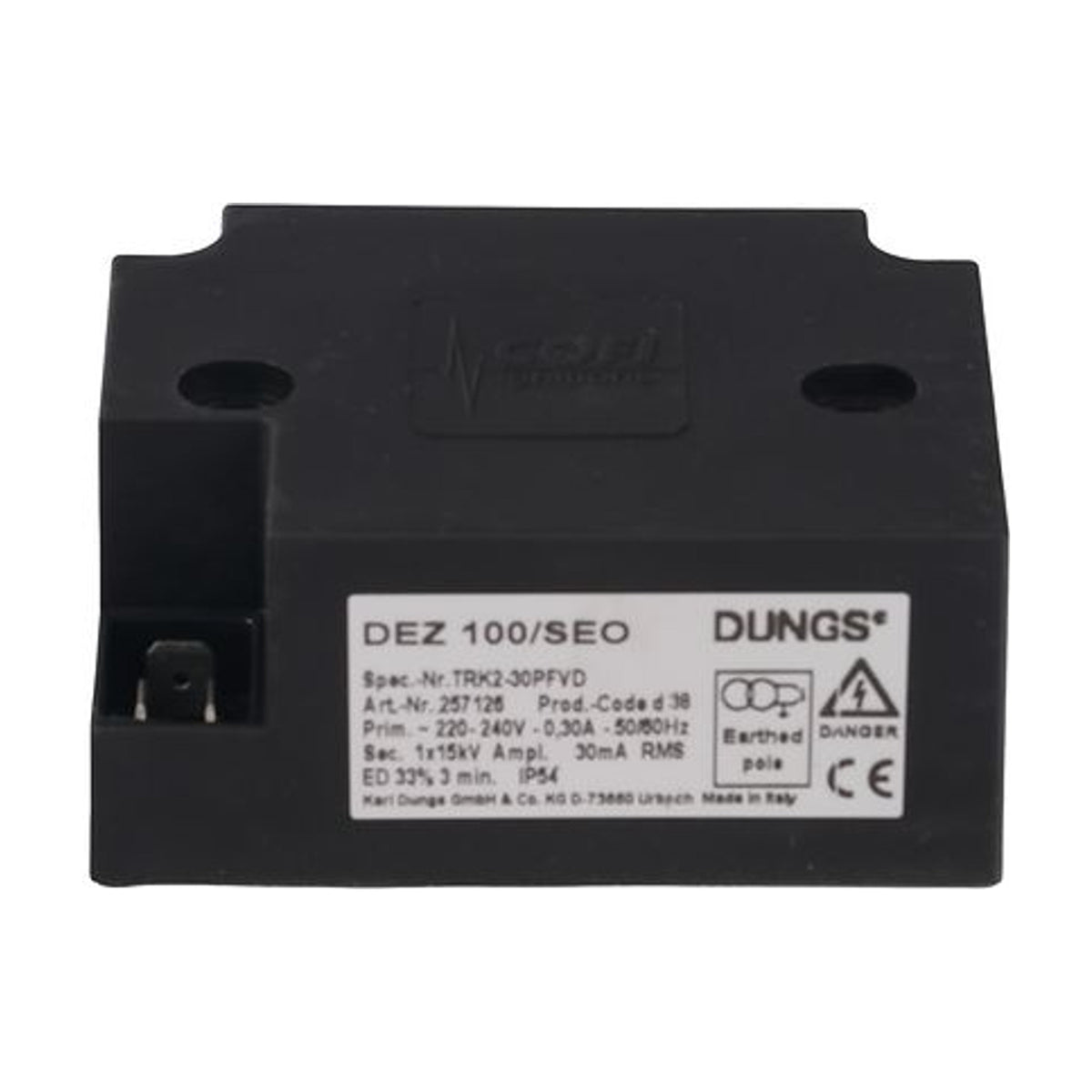

On the part: Black plastic housing with two fixing holes and blade terminals on one side. On the label: DEZ 100/SEO, DUNGS, Spec.-Nr. TRK2-30PFVD, Prim. ~ 220-240 V, 0.30 A, 50/60 Hz, Sec. 1x15 kV, Ampl. 30 mA RMS, ED 33% 3 min., IP54, Karl Dungs GmbH & Co. KG D-73660 Urbach, Made in Italy, the CE mark, "Earthed pole" and the danger triangle. The COFI mark is embossed on the cover. The Art.-Nr. next to the Spec.-Nr. is not readable (the last digit is doubtful).
INOKSAN code 2011030761.
Before ordering, check:
- The Spec.-Nr. TRK2-30PFVD and the DEZ 100/SEO designation read on the label, plus code INOKSAN 2011030761.
- The 15 kV, 30 mA secondary and the ED 33% for 3 minutes duty: a transformer with a different secondary will not light, and one with a lower duty burns out. SEO means SINGLE ELECTRODE, that is, ignition and ionisation flame monitoring both run through the same electrode.
- 🔴 If the burner has two separate electrodes, the version without SEO is the one needed: that is the difference that gets the wrong part bought.
- DUNGS gives the DEZ 100/SEO at 230 V the order number 257 126, one high-voltage output, 69 VA drawn, a 10 kHz secondary, ambient temperature -20…60 °C and a weight of 0,32 kg.
- ⚠️ Also from DUNGS: the ignition lead must not exceed 1 metre, it is carbon fibre at 10 kΩ/m, the electrode connection is ø 6,3 mm and the earth connection is mandatory.
Send me the brand, model and serial number of the machine and I will confirm it is the right part: WhatsApp +39 338 921 5833.
When to replace it: if the burner makes no ignition attempt, if it locks out straight after, if there is no spark, or if the flame is not detected.
| Type | ignition transformer |
|---|---|
| Brand on the part | DUNGS |
| Marking | DEZ 100/SEO |
| Spec.-Nr. | TRK2-30PFVD |
| Supply | 220-240 V, 0,30 A, 50/60 Hz |
| Secondary | 1x15 kV, 30 mA RMS |
| Duty | ED 33%, 3 min, IP54 |
| Version | SEO, single electrode |
| High-voltage outputs | one |
| Power consumption | 69 VA |
| Ambient temperature | -20…60 °C |
| DUNGS order number | 257 126 |
| INOKSAN code | 2011030761 |
| Compatible machines | INOKSAN |
| Condition | New |
If you need further technical details before ordering, write or call us at 338 921 5833You avoid a pointless return and feel more confident.
